DJI Mic 3 Camera‑Mount Receiver | CP.RN.00000477.01
Meet the DJI Mic 3 Camera‑Mount Wireless Receiver — a compact, two‑channel hub that makes your wireless audio setup more flexible. Designed to mount to your camera or clip onto a compatible hot shoe, it delivers crisp sound, timecode support, and intuitive control wherever you record. Ideal whether you’re expanding your current Mic 3 setup, needing a backup, or simply upgrading your existing receiver, this unit keeps your audio consistent and pro‑level.
With dual‑band wireless (2.4 & 5.8 GHz) and Bluetooth 5.4, you get solid connection even in busy environments. A built‑in 1.1‑inch AMOLED screen lets you adjust settings like gain, monitoring, and audio mode directly on the receiver — no need to reach for your phone. Plus, the battery life gives you up to 10 hours of continuous use, so it’s ready for long shoots.
Key Features
- Supports up to two audio channels; mount it on camera or compatible shoe‑mounts
- Dual‑band wireless & Bluetooth 5.4 for stable, flexible connection
- Timecode input and output for accurate audio/video sync during post‑production

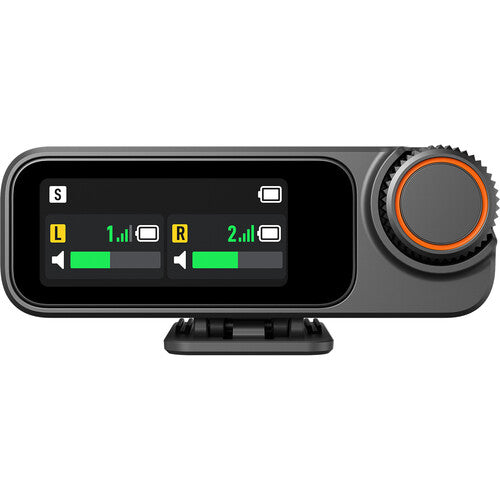

- Bright 1.1‑inch AMOLED touchscreen with onboard controls for live adjustments

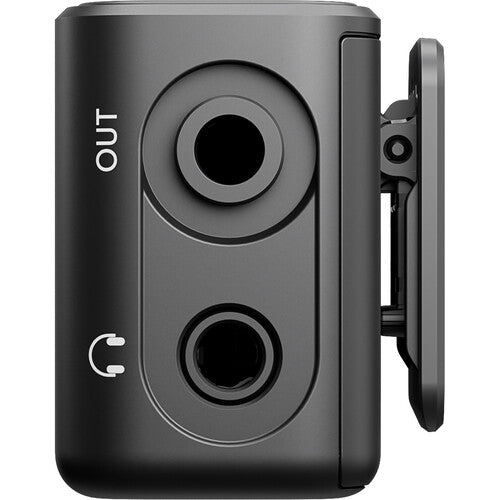

- Includes 3.5 mm TRS output for camera, 3.5 mm headphone jack for monitoring, plus USB‑C adapter
- Built‑in rechargeable battery delivers up to 10 hours of runtime
Model
DJI Mic 3 Camera‑Mount Wireless Receiver
Manufacturer part number
CP.RN.00000477.01
Wireless Technology
Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth 5.4
Diversity
Non‑Diversity
Max Operating Range
1312.3′ / 400 m (Line‑of‑Sight); 262.5′ / 80 m (with Obstruction)
Receiver Type
Camera‑Mount 2‑Channel Receiver Unit
Number of Audio Channels
2
Max Transmitters per Band
4
Built‑in Recorder
No
Timecode Support
Yes
Mobile App Compatible
Yes: Android & iOS (DJI Mimo)
Audio I/O
1× 3.5 mm TRS Output; 1× 3.5 mm Headphone Jack
USB/Lightning Connectivity

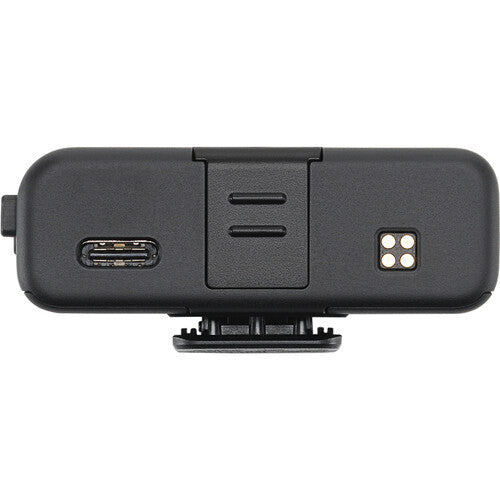

USB‑C Female (charging / data / adapter included)
Display
OLED / AMOLED Touchscreen
Receiver Battery Life
10 Hours
Battery Charging Time
50 Minutes
Receiver Battery Type
Built‑in rechargeable – 275 mAh
Dimensions
2.1 × 1.1 × 0.9 in / 53.9 × 28.7 × 22 mm
Weight
0.9 oz / 25.1 g
Mounting Options
Shoe‑Mount (built‑in shoe adapter); USB‑C plug‑in (with included adapter)
Included Items
Receiver, USB‑C mobile‑phone adapter, USB‑C to USB‑C data cable, locking 3.5 mm TRS‑to‑TRS audio adapter cable, carrying pouch, 1‑year manufacturer warranty
