Bosch Series 4 90cm Wall-Mounted Cooker Hood
Questions about this cooker hood? Ask Otto
AIOtto is an AI assistant and can make mistakes. Check product details, prices and energy labels before you buy.
Description

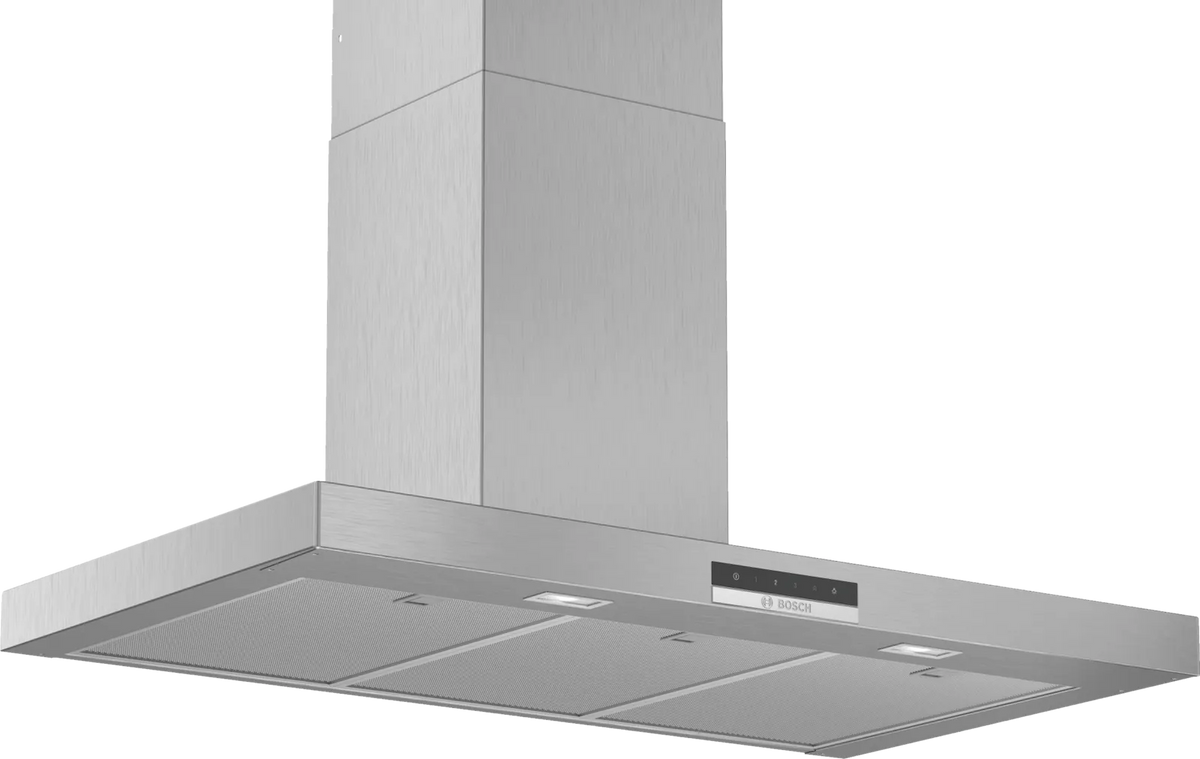

Bosch Series 4 90cm Wall-Mounted Cooker Hood, Stainless Steel · product code DWB96DM50B
At a glance
- Extraction372 m³/h on normal speeds and 604 m³/h on intensive
- Width90 cm box-design canopy for wide hobs and range cookers

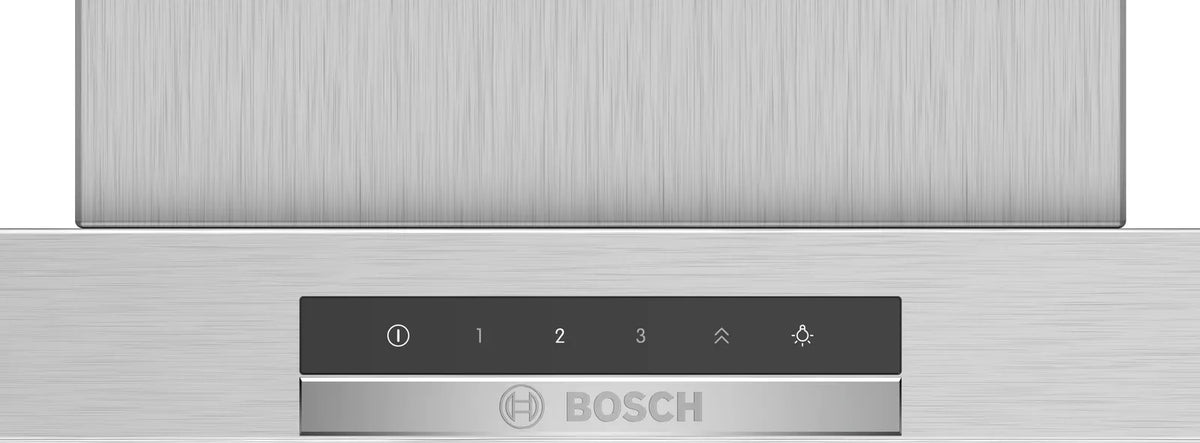

- ControlsTouch Select electronic control with display, three speeds plus intensive
- LightingTwo 1.5 W LEDs at 3500 K providing 214 lux

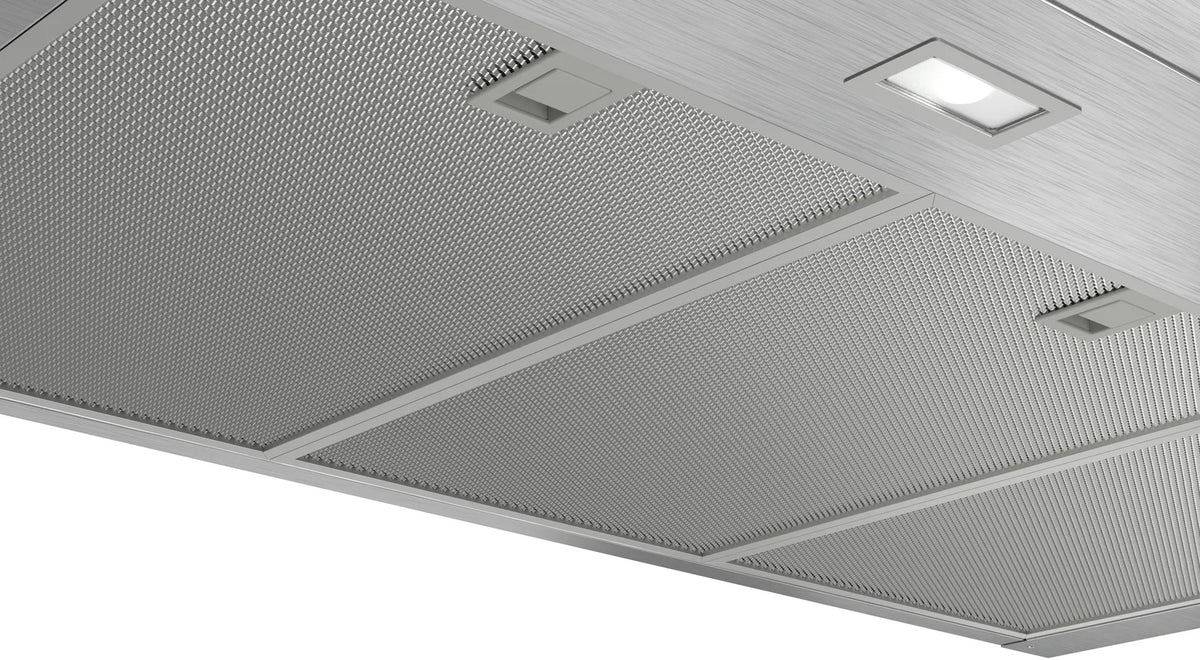

- FiltersThree washable aluminium grease cassettes that go straight into the dishwasher
- EnergyB rated, 48.5 kWh a year, 220 W connection rating
Full description
Bosch Series 4 90cm Wall-Mounted Chimney Cooker Hood
A 90cm stainless steel chimney hood for Irish kitchens, moving up to 604 m³/h on intensive to clear steam and cooking smells from a wide hob.
The DWB96DM50B is Bosch's Series 4 wall-mounted chimney hood in a box design, finished in stainless steel and sized at 90 cm to sit above a wide hob or a range-style cooking area. It suits kitchens where the hood is on show, and where a 60 cm model would leave the outer rings uncovered.
Extraction is the point. Three speeds cover everyday cooking at up to 372 m³/h, and an intensive setting lifts that to 604 m³/h for the moments when a pan catches or a curry fills the room. Intensive reverts to the previous speed after six minutes, so it never runs on unnoticed.
Ideal For

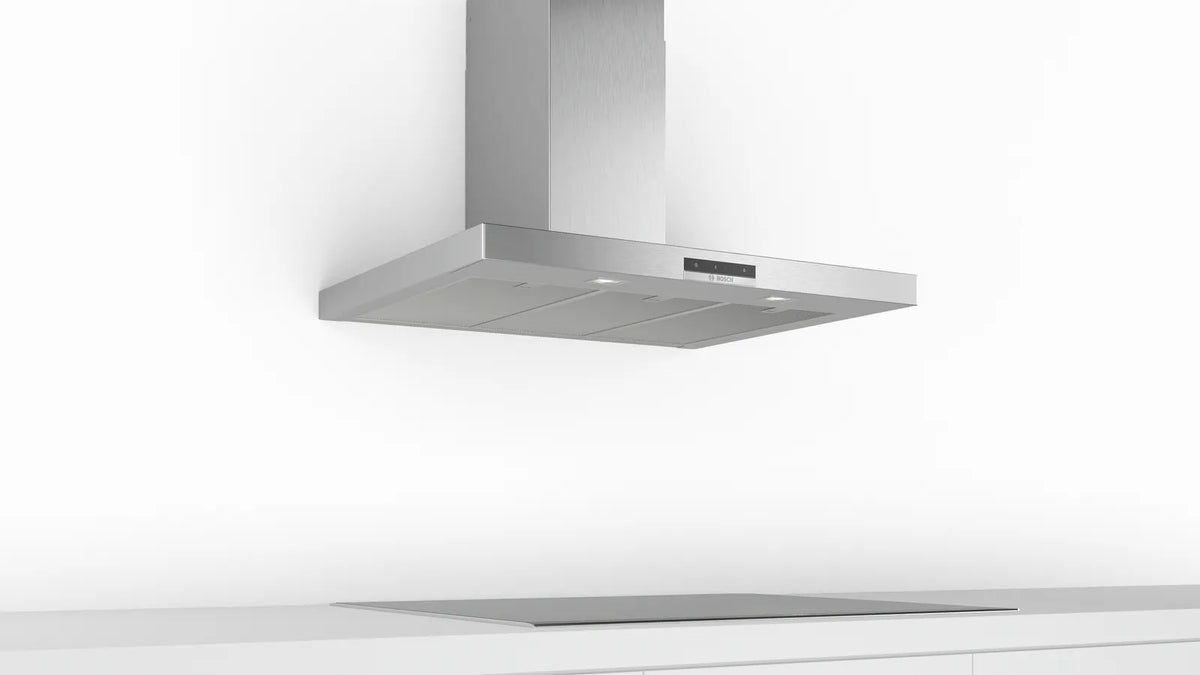

At 90 cm across, the canopy covers a 90cm hob or a range cooker's full cooking surface, so steam rising from the outer burners is drawn up rather than left to spread.
The stainless steel box design is meant to be seen, with a chimney that adjusts between 63.5 and 96.5 cm in ducted installation to suit the ceiling height above.
Three washable aluminium cassettes go into the dishwasher when frying has taken its toll, and Touch Select controls with a display let you change speed with greasy hands.
Key Features
The intensive setting pulls 604 m³/h and steps back to the previous speed after six minutes, clearing a smoky moment without leaving the fan roaring.
Three normal stages cover simmering, frying and everything between, topped by intensive when needed, all set through Touch Select electronic controls with a clear display.
Two 1.5 W LEDs at 3500 K put 214 lux onto the hob, warm enough to judge colour in a pan and low-drain enough to leave on.
Three aluminium grease cassettes lift out for washing and are dishwasher-safe, which keeps maintenance to a tray of filters rather than a scrubbing job.
Run it ducted through a 150 mm outlet, with a 120 mm adapter enclosed, or recirculating with the Clean Air Plus kit at 337 m³/h normal.
Annual energy consumption is rated at 48.5 kWh with a B energy class, and the whole hood draws 220 W at its connection rating.
Why 90cm makes a difference
Steam and grease do not rise in a neat column. They billow, and they drift towards the front and sides of the hob, which is why a canopy narrower than the cooking area lets a share of it escape into the room. At 90 cm wide and 50 cm deep, this hood sits over the whole surface of a wide hob, catching what comes off the outer burners as well as the middle. The result is less condensation on windows and fewer cooking smells in the hall.
Ducted and recirculating options explained
Ducted is the stronger of the two: air leaves through a 150 mm outlet, with a 120 mm adapter enclosed for narrower runs, and reaches 372 m³/h on normal speeds and 604 m³/h on intensive. Where an external run is not possible, the Clean Air Plus kit lets the hood recirculate at 337 m³/h normal and 441 m³/h intensive, filtering the air and returning it to the kitchen. The kit is not supplied with the hood.
Fitting it above your hob
Plan the clearances before ordering. Bosch specifies a minimum of 550 mm between an electric hob and the underside of the hood, and 650 mm above gas, which sets how high the canopy sits on the wall. In ducted installation the overall height adjusts from 63.5 to 96.5 cm, so the chimney can be matched to standard and taller ceilings; recirculating installation extends that height to 107.5 cm. The hood measures 90 cm wide and 50 cm deep and weighs 12.8 kg.
How It Compares
| Kitchen Need | Bosch Technology | Practical Benefit |
|---|---|---|
| Wide hob coverage | 90 cm canopy | Covers the full width of a 90cm hob, so steam from the outer burners is drawn up too |
| Heavy frying | 604 m³/h intensive | Clears smoke quickly, then drops back to the previous speed automatically after six minutes |
| No outside wall | Recirculation with Clean Air Plus | Filters and returns air to the kitchen at 337 m³/h, so ducting outdoors is not essential |
| Evening cooking | 214 lux LED lighting | Two 3500 K LEDs light the hob well enough to judge browning without switching on the room lights |
| Easy upkeep | 3 aluminium cassettes | Filters lift out and go in the dishwasher, so degreasing is a load rather than a chore |
| Running costs | 48.5 kWh a year | Rated B for energy, with a 220 W connection rating covering fan and lighting together |
Specifications
| Brand | Bosch |
| Model | DWB96DM50B |
| Product Type | Cooker Hood |
| Series | Series 4 |
| Design | Box-design wall-mounted chimney hood |
| Width | 90 cm |
| Colour | Stainless Steel |
| Energy Rating | B |
| Max Extraction Rate (normal) | 372 m³/h |
| Intensive Extraction Rate | 604 m³/h |
| Recirculation Rate (with Clean Air Plus kit) | 337 m³/h normal / 441 m³/h intensive |
| Noise Level | 60 dB(A) max normal / 70 dB(A) intensive |
| Speed Settings | 3 stages + intensive with 6-minute auto revert |
| Controls | Touch Select electronic control with display |
| Lighting | 2 x 1.5 W LED, 3500 K, 214 lux |
| Grease Filters | 3 washable aluminium cassettes, dishwasher-safe |
| Operating Modes | Ducted or recirculating (recirculation kit required) |
| Air Outlet Diameter | 150 mm (120 mm adapter enclosed) |
| Connection Rating | 220 W |
| Minimum Distance Above Hob | 550 mm electric / 650 mm gas |
| Dimensions (ducted) | H 63.5-96.5 x W 90 x D 50 cm |
| Annual Energy Consumption | 48.5 kWh/year |
| Weight | 12.8 kg |
| Warranty | 2 Year Warranty |
The Verdict
Strengths
- 90 cm canopy suits wide hobs and range cookers
- 604 m³/h intensive extraction for heavy cooking
- Three speeds plus intensive with six-minute auto revert
- Touch Select electronic controls with a display
- Three dishwasher-safe aluminium grease cassettes
- Ducted or recirculating operation, 150 mm outlet
- Stainless steel box design, 12.8 kg net weight
Considerations
- Recirculating operation needs the Clean Air Plus kit, which is not supplied with the hood; only a 120 mm adapter is enclosed.
- At full intensive the hood reaches 70 dB(A), loud enough to talk over in an open-plan kitchen; normal speeds top out at 60 dB(A).
- It needs 90 cm of clear wall, a minimum 550 mm above an electric hob or 650 mm above gas, and secure wall fixing.
What's in the Box
- Cooker hood x1
- 120 mm air outlet adapter x1
- Installation/user manual x1
From the manufacturer
Specifications
Bosch Series 4 90cm Wall-Mounted Cooker Hood, product code DWB96DM50B.
Product overview
| Brand | Bosch |
|---|---|
| Model | DWB96DM50B |
| Product Type | Cooker Hood |
| Series | Series 4 |
| Colour | Stainless Steel |
| Product code | DWB96DM50B |
Connectivity
| Connection Rating | 220 W |
|---|
Functions and programmes
| Speed Settings | 3 stages + intensive with 6-minute auto revert |
|---|---|
| Controls | Touch Select electronic control with display |
| Operating Modes | Ducted or recirculating (recirculation kit required) |
Energy and noise
| Energy Rating | B |
|---|---|
| Noise Level | 60 dB(A) max normal / 70 dB(A) intensive |
| Annual Energy Consumption | 48.5 kWh/year |
Dimensions and installation
| Width | 90 cm |
|---|---|
| Dimensions (ducted) | H 63.5-96.5 x W 90 x D 50 cm |
| Weight | 12.8 kg |
Warranty and support
| Warranty | 2 Year Warranty |
|---|
More details
| Design | Box-design wall-mounted chimney hood |
|---|---|
| Max Extraction Rate (normal) | 372 m³/h |
| Intensive Extraction Rate | 604 m³/h |
| Recirculation Rate (with Clean Air Plus kit) | 337 m³/h normal / 441 m³/h intensive |
| Lighting | 2 x 1.5 W LED, 3500 K, 214 lux |
| Grease Filters | 3 washable aluminium cassettes, dishwasher-safe |
| Air Outlet Diameter | 150 mm (120 mm adapter enclosed) |
| Minimum Distance Above Hob | 550 mm electric / 650 mm gas |
